- Distributed Load considering wind pressure: 3090 kg
- Uniformly distributed load UDL: 3900 kg
- Weight: 410 kg
- Transport volume: 5,4 m3
- Covered area/storage volume ratio: 4,5
- Towers: 4 fixed legs
- Trusses for lifter: QX30SA
- Trusses for roof: QX30SA
- Roofing sheet: Self-extinguishing Class 2 - 590 g/sqm

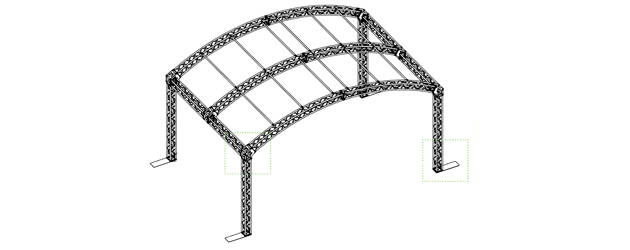

Arc Roof Systems highlight the specifics of their components: the reliability and strength of end-plated trusses and the intuitive technical and constructive know-how of the custom-made parts. Easy to assemble, they use as many standard production parts as possible. Thanks to their modularity, they may be expanded depthwise to build long tunnels. They are
recommended both for temporary and permanent installations. They are particularly suitable for tourist centres, public parks, squares and exhibition areas, even in town centres, given their visual impact.
