- QL85A 85 x 85 cm EN AW-6082 T6 aluminium vertical main truss
- Key structural elements in S355 steel like modular ballast bases, sleeve block and safety block
- Compatible with MyT Folding Steroid trusses (with suitable sleeve block)
- 25 m maximum tower height
- Maximum payload of 18,500 kg at 17 meters height

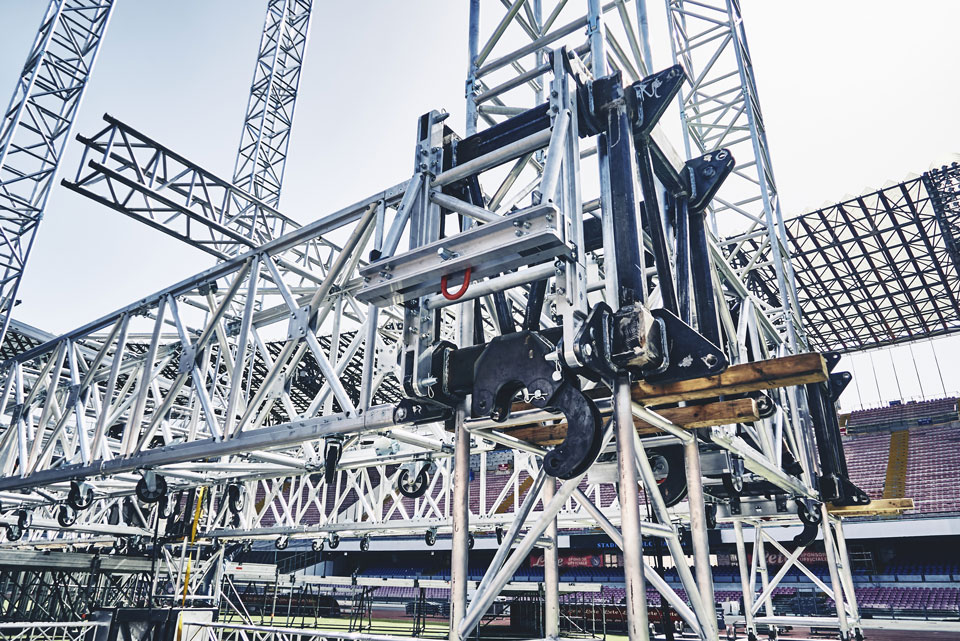

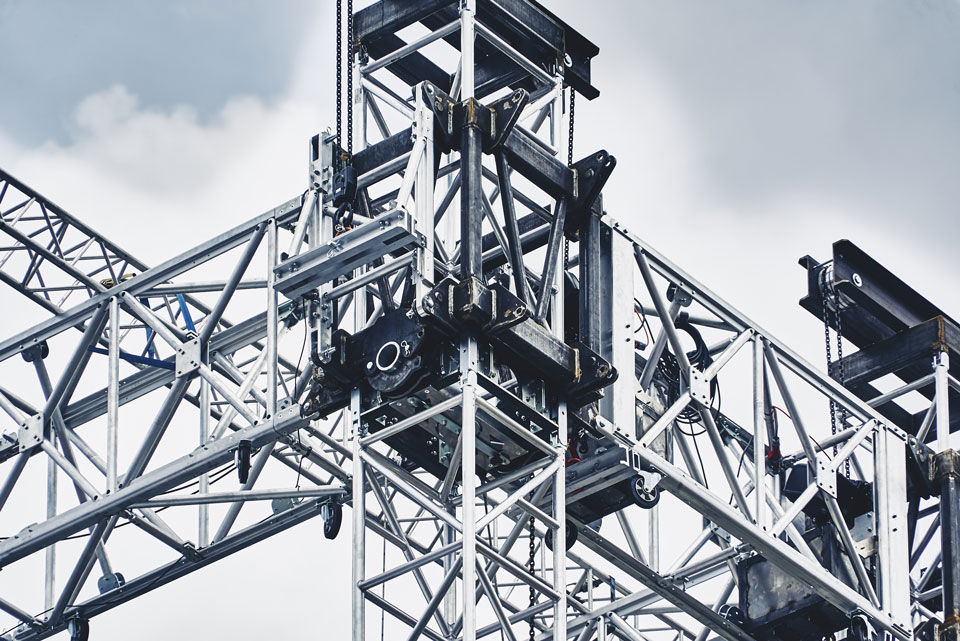

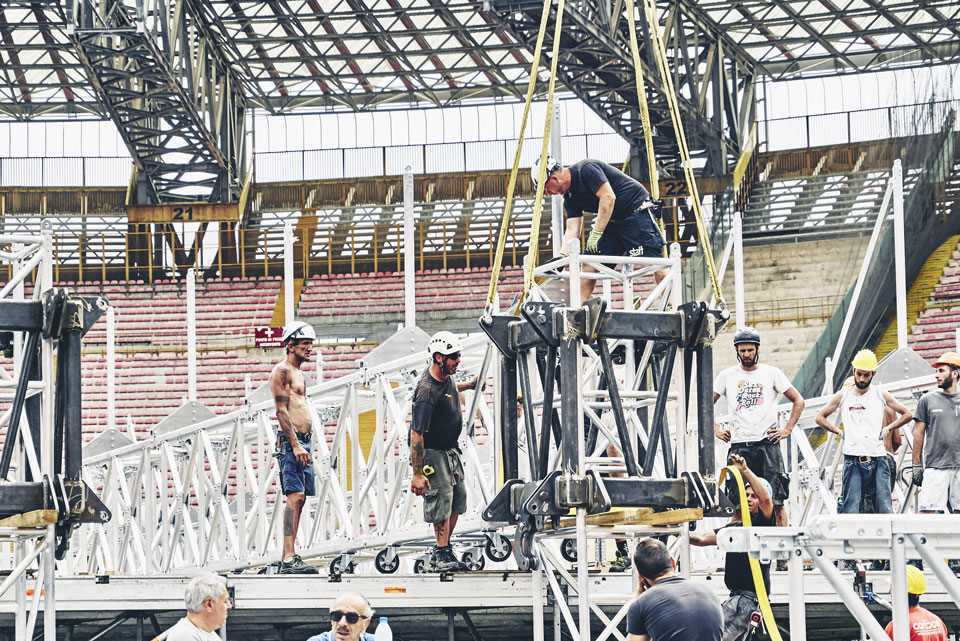

- Multi-directional sleeve blocks feature a mechanical safety lock system that secures the block from drop and lift when used in conjunction with the safety block.
- Innovative mechanical safety lock offers a fast, safe and reliable method of securing the sleeve block at working height
- Steel fork connection system
- 910 x 910 mm modular ballast base support system
- 70 x 5 mm main chords
- 50 x 4 mm brace / diagonal

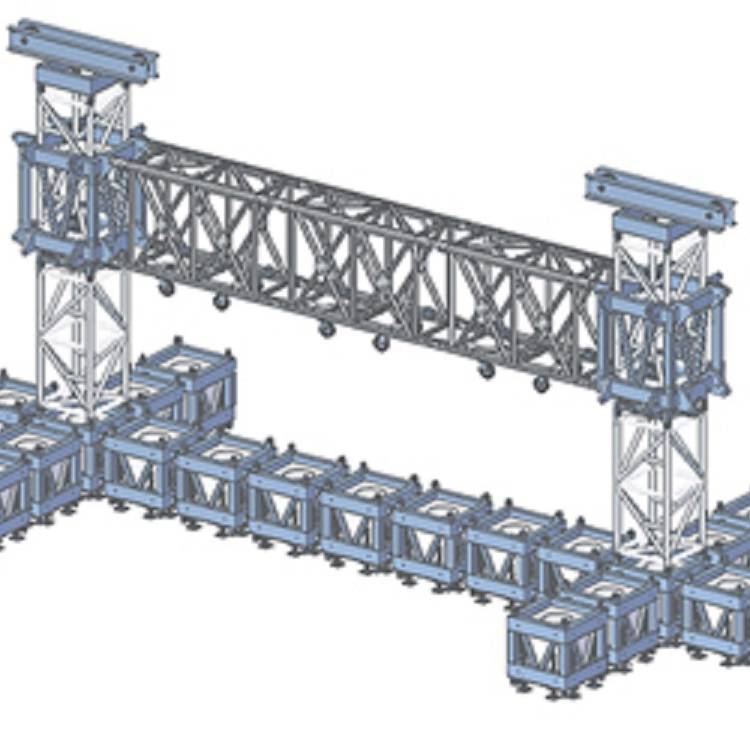

The QL85 high performance tower system has been specifically developed for use with MyT truss. QL85 encompases many advanced features including the LITEC modular ballast base support system and the innovative mechanical safety lock - which offers a fast, safe and reliable method of securing the sleeve block at working height.
