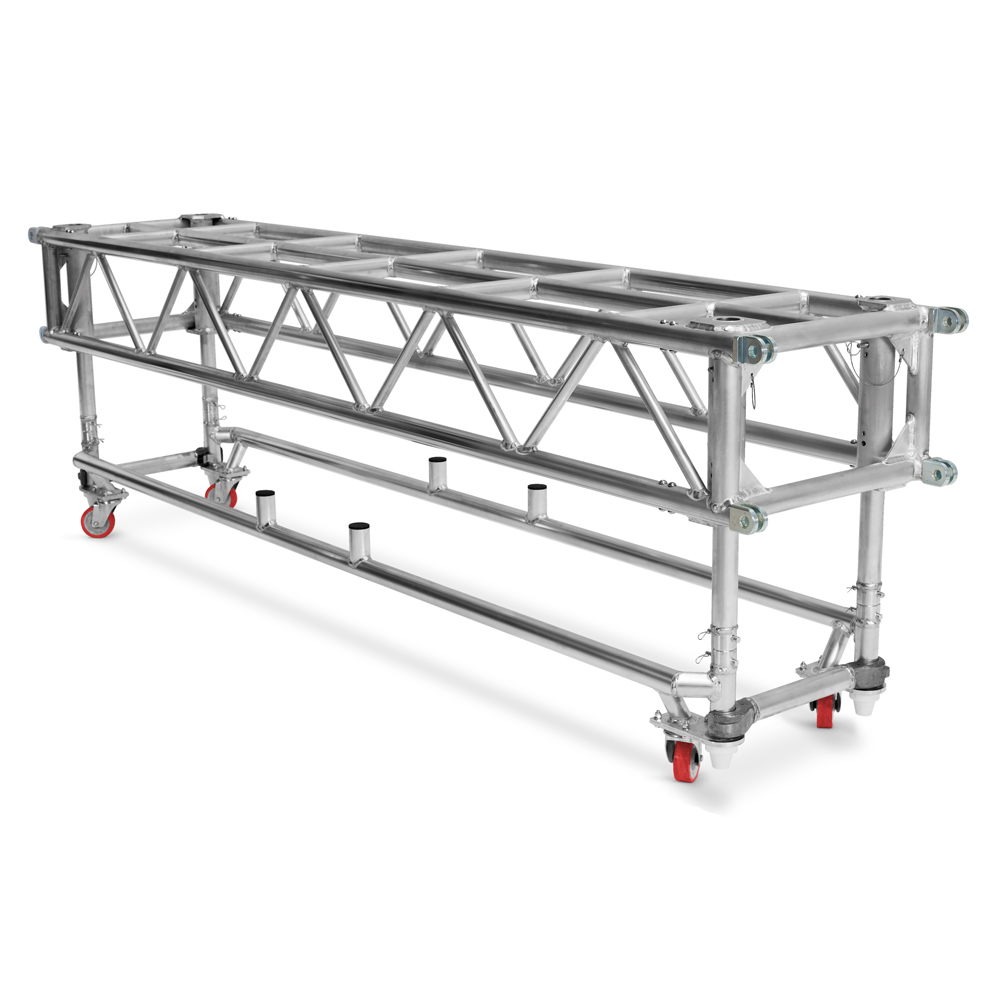

A pre-rig truss for supporting and transporting moving heads.
- Chords A: extruded tube Ø 50 x 4 mm EN AW 6082 T6
- Diagonals B: extruded tube Ø 25.4 x 3.2 mm EN AW 6082 T6
- Horizontal braces C: extruded tube Ø 50 x 3 mm EN AW 6082 T6
- Ends D: aluminium forks connector EN AW 6082 T6
- Fixing points E: extruded tube Ø 50 x 3 mm EN AW 6082 T6
- Connection system KHLP: Cylindrical pin + safety R-clip

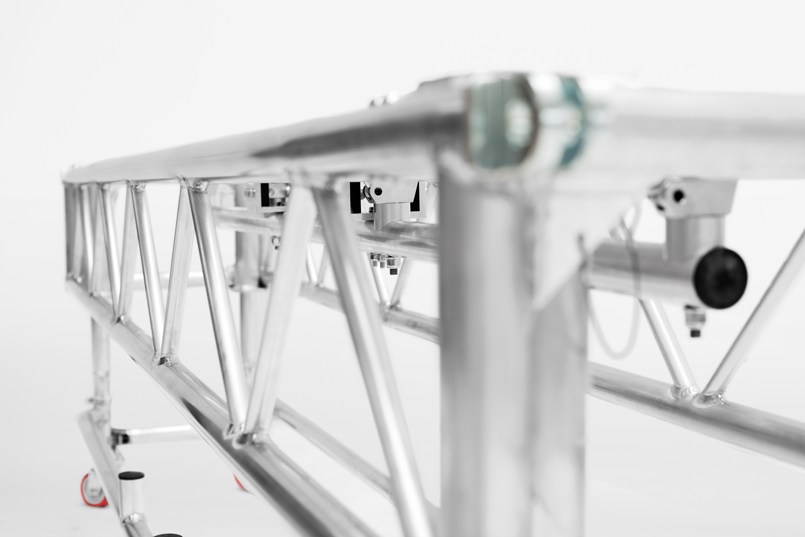

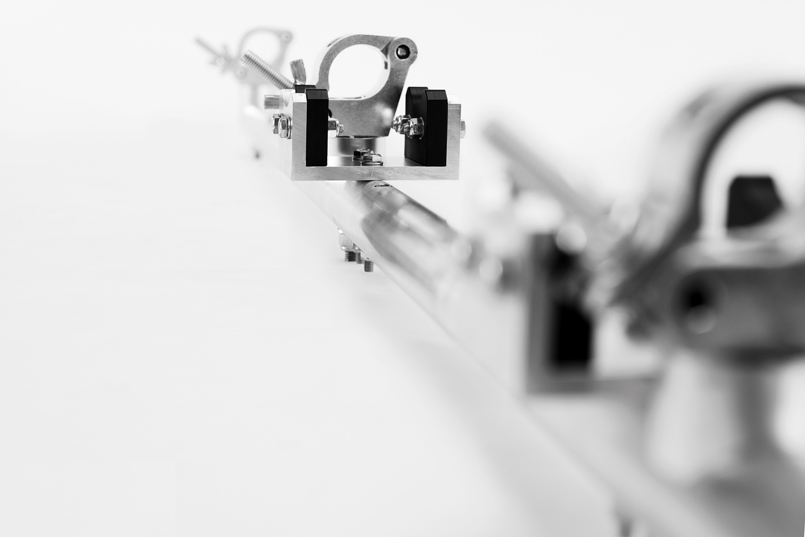

A pre-rig truss for supporting and transporting moving heads. It is equipped with 4 castor wheels for easy maneuverability and pins for the connection of truss pieces. Each truss is designed to carry a lighting bar complete with moving heads. The lighting bar is hooked onto the main chord and allows lights to move. This design reduces the amount of space required for rigging in the truck.
