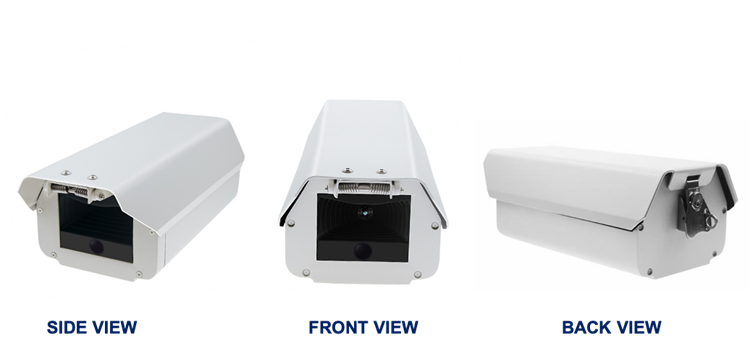

S22 Thermal Imager






MAIN FEATURES


• Specifically designed to monitor body temperature with non-contact detection in a non invasive way during FESTIVALS, EXHIBITIONS, EVENTS or any places open to public in general;

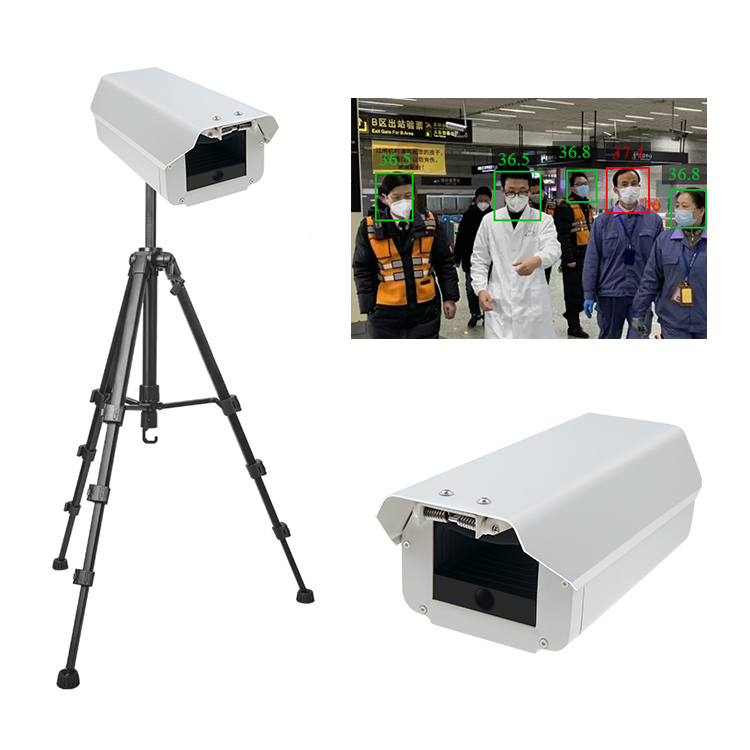

• Fixed mount purposes, infrared thermal imager & video camera all in one, it can be placed at access gates for unattended temperature recognition and access control;

• Voice alarms when detecting temperature above safety standards;

• Data transfer via Ethernet connection in continuous real time reading with “automatic detection” of the highest temperature spotted - detection time 0,5 sec;

• “Multiple” body temperature readings with a precision ±0,3 °C a range from 20°C to 45°C @ a distance from 0,5 to 5 meters;

• Automatic picture taking function once exceeded safety temperature set up by the operator;

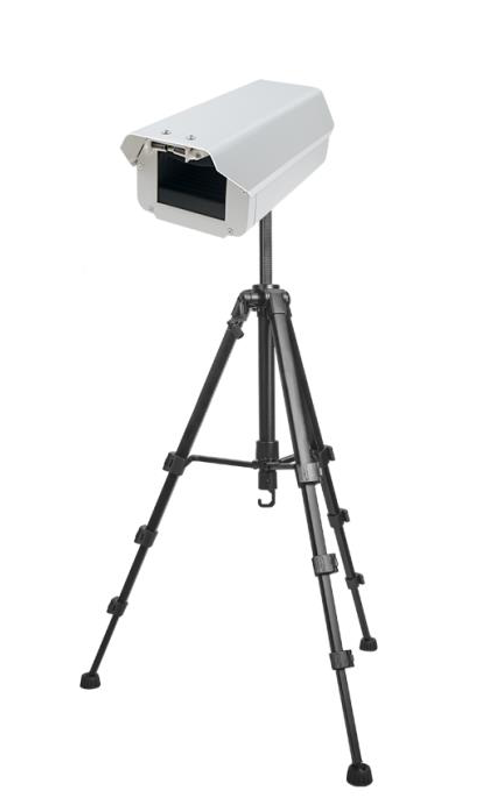

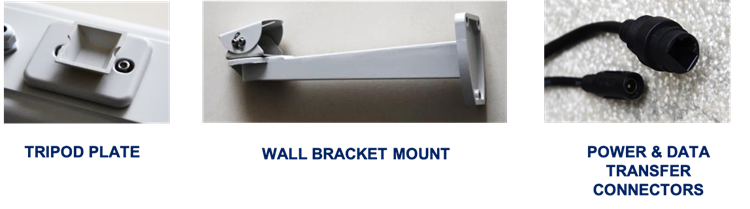

• Wall & Tripod mounts available as a separate accessory;

• Dedicated software for handling read out parameters;









TECHNICAL SPECIFICATIONS



Infrared resolution

210*160

Shooting Angle

37°

Detection time

0,5 seconds

Thermal sensitivity

0.07 °C

Spatial resolution

1.7mrad

Warm up time

10 min

Infrared spectral band

8μm to 14μm

Power supply type

12 Volts - DC power supply

Pc connection

Ethernet

Image format

JPG - 1920*1080 pixel

Temperature measurement range

20°C-45°C

Reading accuracy

< ±0.3°C

Alarm function

Alarm once identify high & low temperature

Focusing method

Fixed focal lens, minimum operative distance 0,5 meters

Test Distance

0.5 – 5 meters

Color mode

Rainbow

Operation time

24/7

Weight & Dimensions

1,325 Kg. - width 140 x depth 275 x height 103 mm.
