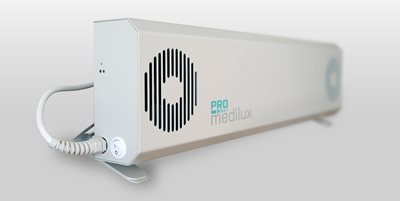

SDS Air 2x24 - Air Disinfection/Purifier





MAIN FEATURES

• Disinfection Technology based on UV Type C ultraviolet lamps;

• The UV rays are capable of destroying the DNA/RNA of micro bio-organisms like  bacteria, fungi, yeasts and viruses, including the COVID 19 CORONAVIRUS!. While preventing replication, hence are known as disinfectants.

• Closed-type device suitable for public places with frequent movement of persons;

• Incredibly low noise due to its special fan < 20db;

• Airflow for faster air purification: 57m³/hours;

• 2x filter prevents from UV discharge lamp soiling, provides additional air purification, and prevents from UV radiation leakage;

• LED status, service, and the need of UV discharge lamp replacement notification;

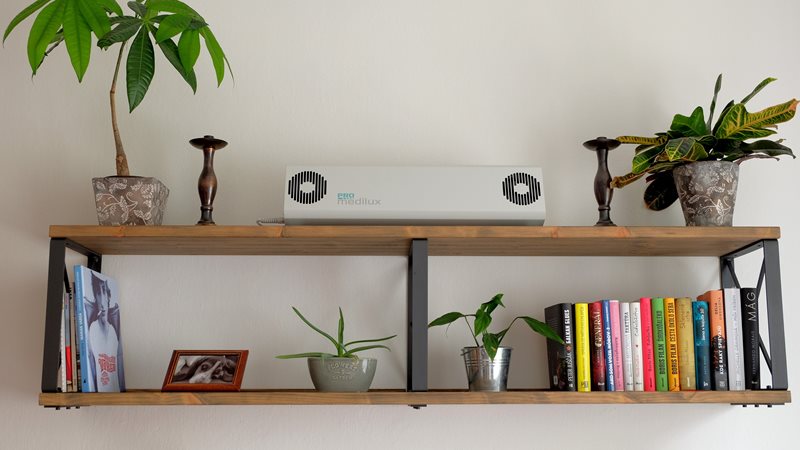

• Multi-functional consoles that allow wall-mounting or desktop use;

• Safety pin that automatically turns off the device when the cover is opened when replacing the exhausted lamps;

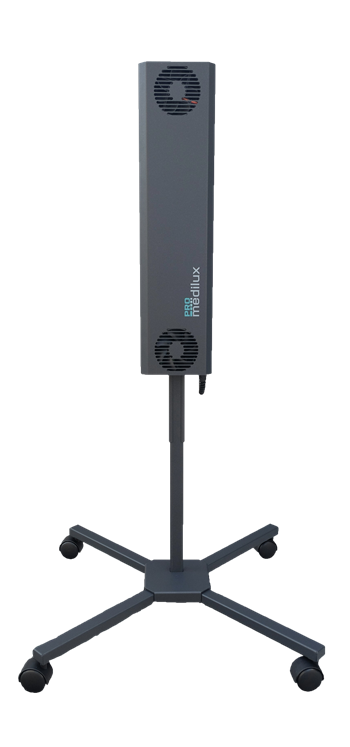

Performances & Benefits​4-black.png



Device purification coverage for ceiling heights of 2,5m:

• Purified air ONCE in  60 minutes:     23m2
• Purified air ONCE in 2hours:             46m2
• Purified air ONCE in 4hours:             92m2
• Purified air ONCE in 8hours:           183m2



Device benefits:

• Long lifetime & powerful, compact emitter;

• Minimalistic design;

• Durable metal construction;

• Easy replacement of discharge lamps (after their lifetime);

• Fan error detection;

• Discharge lamp failure detection;

• Lifetime of the discharge lamp monitoring;







TECHNICAL SPECIFICATIONS

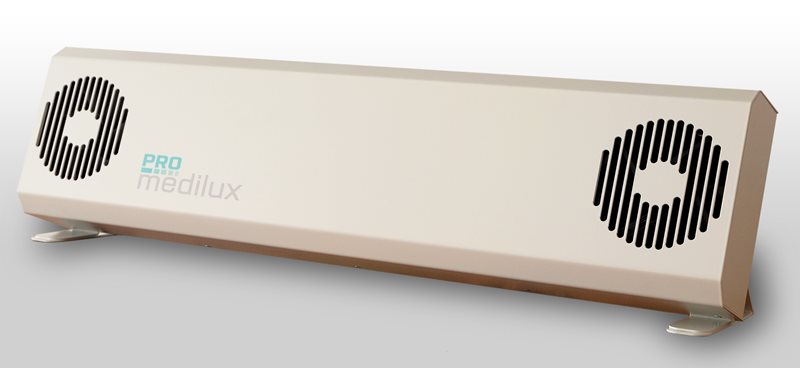

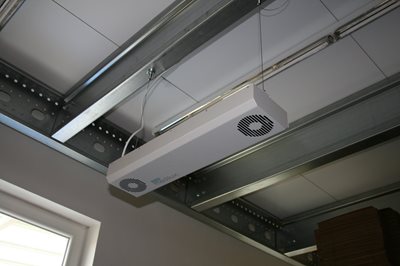

• Dimensions: 600 x 150 x 70 mm; Weight: 3.9kg;  IMG_7926.JPG

• Available colors: Light Grey RAL7035 and
Black RAL9005 MET;

• Operation voltage: 230 VAC/50 Hz; UniSchuko plug connector / EU Terminal;

• Input power: < 55W in active mode with a stand-by
mode of just < 1 W;

• Low noise level: < 20db;

• Airflow: 57m³/hours;

• Lamp type: 2x OSRAM Puritec L 24W or compatible
type;

• Discharge lamp lifetime: 8000 hours;

• Ozone Free Operation;

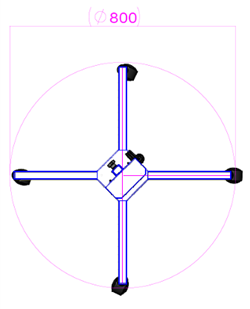

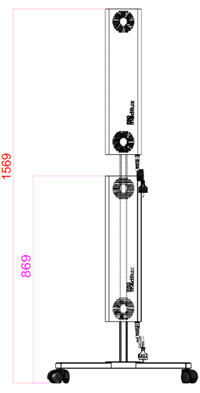

Senza-titolo.png   disegno2-(1).png

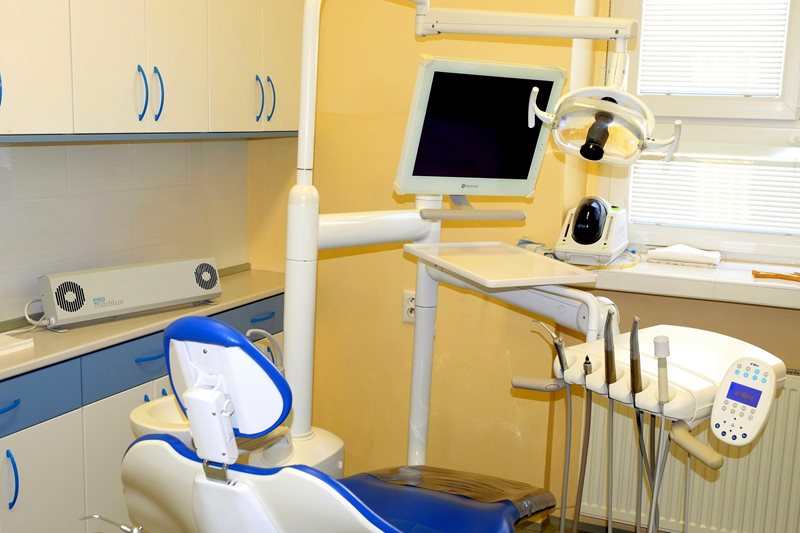

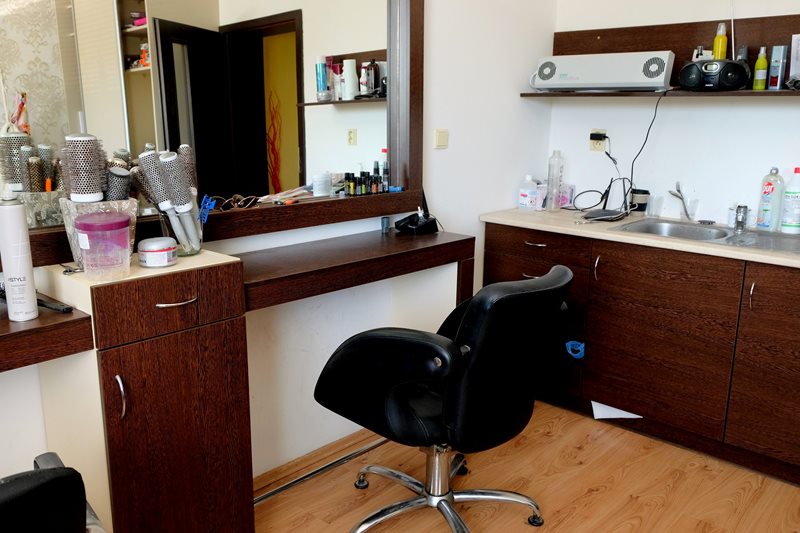

APPLICATIONS














If you have any questions, or need additional information, please contact us at:

info@litectruss.com
