- Distributed Load considering wind pressure: 4848 kg
- Uniformly distributed load UDL: 6240 kg
- Weight: 1210 kg
- Transport volume: 15 m3
- Covered area/storage volume ratio: 3,2
- Towers: 4 x Towerlift 3
- Trusses for lifter: QX30SA
- Trusses for roof: QX40SA+FX30SA
- Roofing sheet: Self-extinguishing Class 2 - 650 g/sqm

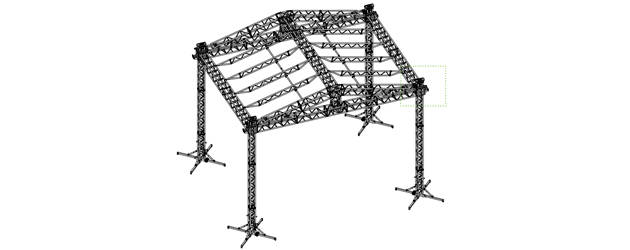

Double-pitch roof systems are the result of the research of high performance and safe solutions. Roofing mounted on manual lifters, these structures may be assembled without electrical-driven parts. The lifter is the well-known
Towerlift 3 and the whole system can be raised up to 6 metres above the ground. They can be fitted with lateral PA wings for hanging audio and video systems.
